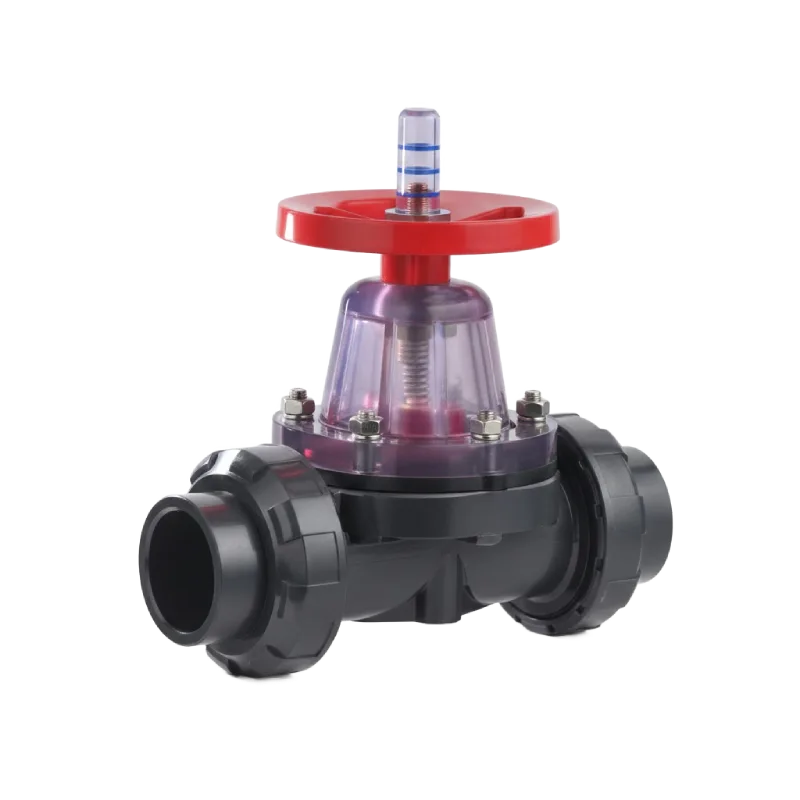

PVC Transparent Diaphragm Valve
The PVC Transparent Diaphragm Valve is engineered for precise flow regulation, shut-off, and visual inspection in clean and sensitive fluid systems. Its transparent PVC body provides full visibility of the internal diaphragm movement, making it ideal for applications where monitoring cleanliness, contamination, or flow behavior is essential.
Designed with a flexible diaphragm that isolates the fluid from internal valve components, it ensures excellent chemical resistance, leak-proof operation, and long service life. It is widely used in laboratories, water treatment systems, chemical handling applications, and industries requiring hygienic flow control.
PVC Transparent Diaphragm Valve
- High-transparency PVC body enables visual monitoring of flow and diaphragm function.
- Flexible, corrosion-resistant diaphragm ensures reliable sealing and precise control.
- Non-metallic, corrosion-proof construction ideal for chemical and clean fluid applications.
- Smooth internal finish reduces pressure loss and prevents sediment buildup.
- Easy manual operation with ergonomic handwheel.
- Leak-proof design with bonded or gasket-sealed connections.
- Lightweight & easy to install, compatible with PVC piping standards.
- Ideal for low-pressure and sensitive fluid applications.
Technical Details of PVC Transparent Diaphragm Valve
| Parameter | Specification |
|---|---|
| Product Name | PVC Transparent Diaphragm Valve |
| Body Material | Transparent PVC (High-Clarity Grade) |
| Diaphragm Material | EPDM / FKM / PTFE (depending on chemical compatibility needs) |
| Connection Type | Socket / Threaded / Flanged (ASTM / DIN / ISO Standards) |
| Available Sizes | ½" to 2" (DN15 to DN50) |
| Operation Type | Manual Handwheel |
| Pressure Rating | PN6 – PN10 (6–10 bar depending on size) |
| Temperature Range | 0°C to 55°C |
| Seal Material | EPDM / FKM |
| Transparency Level | Up to 90% light transmission |
| Flow Characteristics | Precise throttling & shut-off |
| Chemical Resistance | Excellent against acids, alkalis & non-organic chemicals |
| Installation Position | Horizontal or vertical |
| Suitable Media | Clean water, chemical solutions, low-viscosity liquids, lab fluids |
| Applications | Laboratories, aquaculture, chemical dosing lines, filtration units, inspection pipelines |
Customization & Processing Options
Customizations Option Available for PVC Transparent Diaphragm Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
