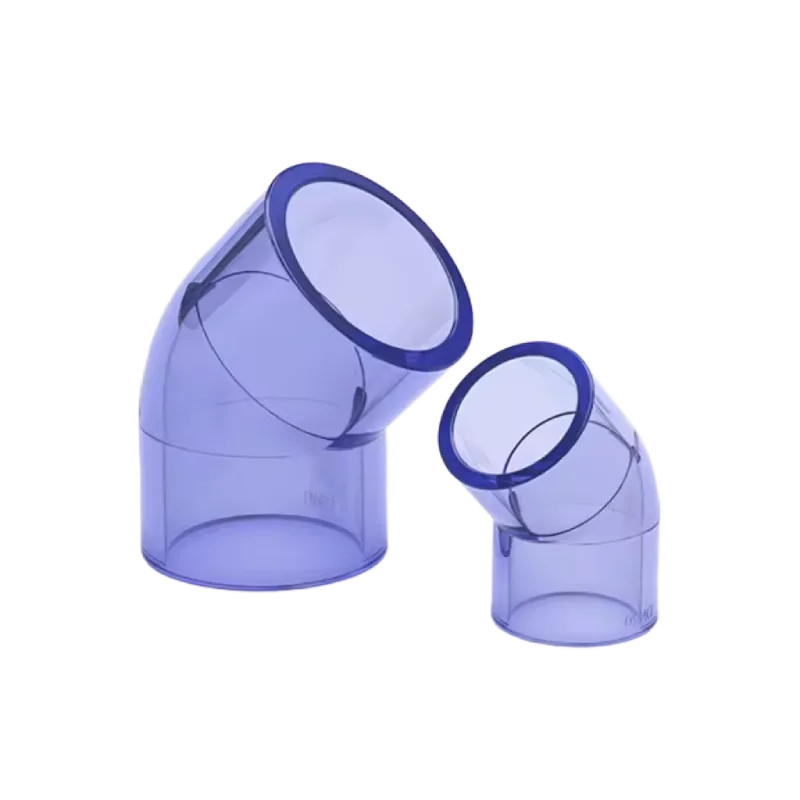

PVC Transparent Elbow 45°
PVC Transparent Elbow 45° is a high-clarity rigid PVC fitting designed for making smooth 45-degree directional changes in transparent piping systems. Its crystal-clear body allows operators to easily observe fluid flow, check for blockages, monitor air bubbles, and detect contamination without disassembly. This makes it especially valuable in applications requiring maximum visibility and clean, controlled fluid movement.
Manufactured from premium-grade transparent PVC, the 45° elbow offers excellent chemical resistance, impact durability, and leak-proof performance when paired with compatible transparent pipes and solvent cement. It is commonly used in laboratories, aquaculture systems, pharmaceutical processes, chemical transport, water treatment units, and various industrial setups that rely on visual inspection.
PVC Transparent Elbow 45°
- Crystal-Clear Transparency
Enables real-time visual monitoring of flow, air pockets, and contamination. - Smooth 45° Flow Transition
Reduces turbulence and maintains efficient fluid velocity during direction changes. - Excellent Chemical Resistance
Performs well with acids, alkalis, salts, and standard industrial solutions. - Corrosion & Scale Free
Clear PVC eliminates the risk of rust, scaling, or biological buildup. - Lightweight & Easy to Install
Suitable for socket/solvent weld joining for leak-proof connections. - Non-Toxic Construction
Safe for use in food, laboratory, and pharmaceutical environments. - Durable & Impact Resistant
Built to withstand everyday handling and long-term operational stress.
Technical Details of PVC Transparent Elbow 45°
| Parameter | Specification / Description |
|---|---|
| Product Name | PVC Transparent Elbow 45° |
| Material | High-Clarity Rigid PVC |
| Angle | 45 Degrees |
| Transparency Level | 90% – 95% light transmission |
| Available Sizes | 20 mm to 110 mm (OD) |
| Pressure Rating | PN6 – PN10 (varies by size) |
| Temperature Range | 0°C to 60°C continuous use |
| Joining Method | Socket/Solvent Cement Weld |
| Wall Thickness Options | SDR 21, SDR 17, SDR 13.5 (size-dependent) |
| Chemical Resistance | Excellent resistance to acids, alkalis, salts & water-based chemicals |
| Flow Characteristics | Smooth internal curvature reduces friction & turbulence |
| Applications | Lab systems, aquariums, pharma lines, chemical handling, water treatment, visible piping systems |
| Standards Compliance | Meets ASTM & ISO requirements for rigid PVC fittings |
Customization & Processing Options
Customizations Option Available for PVC Transparent Elbow 45°
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
