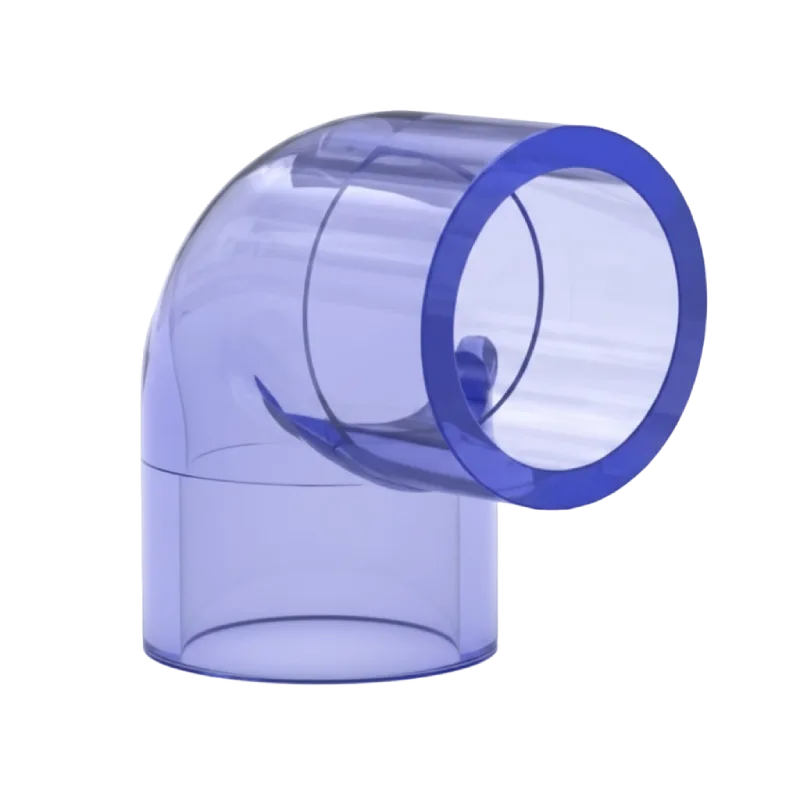

PVC Transparent Elbow 90°
PVC Transparent Elbow 90° is a precision-molded clear PVC fitting designed to create smooth 90-degree directional changes in piping systems while providing full visual access to the fluid or material flowing inside. Unlike standard opaque PVC elbows, this transparent elbow allows operators to monitor flow conditions, detect blockages, identify air bubbles, or inspect contamination instantly without disassembling the pipeline.
Manufactured using high-clarity, rigid PVC material, the Transparent 90° Elbow delivers excellent chemical resistance, durability, and leak-proof performance when installed with compatible transparent PVC pipes and solvent cement. It is widely used in laboratories, aquaculture, food processing, pharmaceutical systems, chemical handling, water treatment plants, and any application requiring visible fluid transport.
PVC Transparent Elbow 90°
- High Transparency for Visual Monitoring
Provides clear visibility for inspection, flow evaluation, and system diagnostics. - Smooth Internal Curvature
Ensures low friction and minimal pressure drop during directional flow changes. - Chemical-Resistant Material
Suitable for acids, alkalis, salts, and various industrial fluids. - Corrosion & Rust Free
Clear PVC construction prevents corrosion, scaling, and oxidation. - Precise 90° Angle Fabrication
Ensures accurate routing of pipelines in compact installations. - Impact-Resistant & Durable
Withstands mechanical stress and offers long service life. - Easy Installation
Lightweight design compatible with solvent cement or socket joints. - Non-Toxic & Safe for Sensitive Applications
Suitable for food, pharma, and laboratory systems where purity is essential.
Technical Details of PVC Transparent Elbow 90°
| Parameter | Specification / Description |
|---|---|
| Product Name | PVC Transparent Elbow 90° |
| Material | High-Clarity Rigid PVC |
| Angle | 90 Degrees |
| Transparency Level | 90% – 95% light transmission |
| Available Sizes | 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 75 mm, 90 mm, 110 mm |
| Pressure Rating | PN6 – PN10 (depending on size & wall thickness) |
| Temperature Range | 0°C to 60°C continuous operation |
| Joint Type | Socket/Solvent Weld |
| Chemical Resistance | Excellent against acids, alkalis, salts & water solutions |
| Wall Thickness | SDR 21, SDR 17, SDR 13.5 (varies by size) |
| Standards | Conforms to ASTM / ISO specifications for rigid PVC fittings |
| Applications | Lab systems, water treatment, aquaculture, chemical lines, transparent piping systems |
Customization & Processing Options
Customizations Option Available for PVC Transparent Elbow 90°
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
