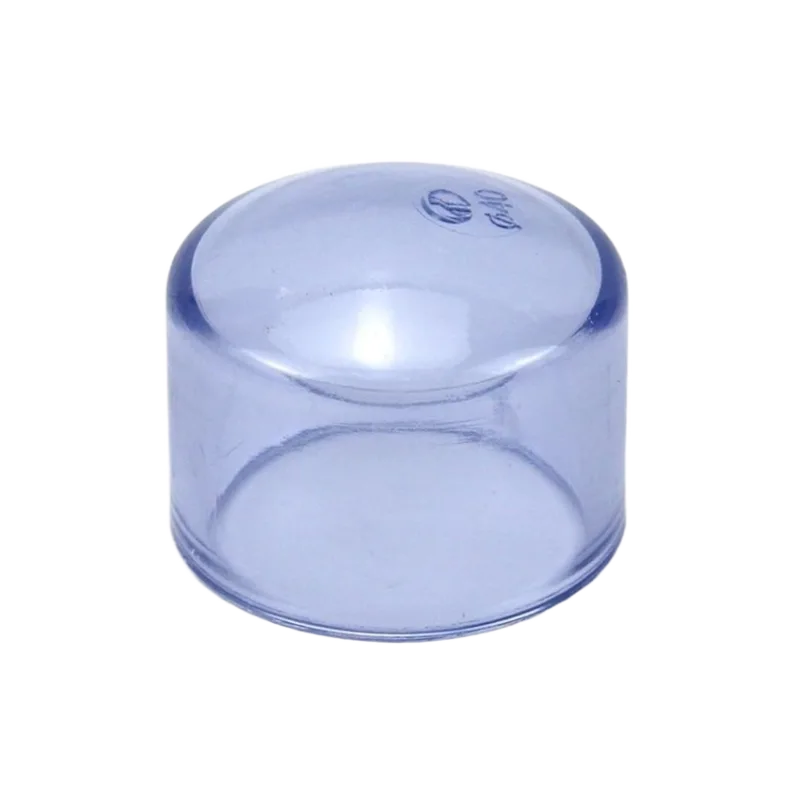

PVC Transparent End Cap
The PVC Transparent End Cap is a high-clarity pipe fitting used to seal the end of a pipeline, ensuring safe closure and protection of the system. Its transparent body makes it ideal for applications where visual inspection of the pipe interior is required, allowing operators to verify cleanliness, flow stoppage, or contamination without dismantling the system.
Made from premium rigid transparent PVC, this end cap is lightweight, corrosion-resistant, and compatible with a wide range of chemicals. It is widely used in laboratories, aquaculture tanks, chemical processing lines, pharmaceutical setups, water treatment systems, and test rigs where visual monitoring and hygiene are essential.
PVC Transparent End Cap
- Transparent Construction
Enables easy inspection of sealed line ends for clarity, contamination, or residue. - Leak-Proof Sealing
Provides a secure closure using solvent cement for reliable system shutoff. - Corrosion & Chemical Resistant
Suitable for acids, alkalis, salts, and general industrial chemicals. - Lightweight & Strong
High-strength rigid PVC ensures long-term performance without cracking. - Smooth Internal Surface
Minimizes debris accumulation and enhances system cleanliness. - Quick Installation
Easily installed using standard solvent welding techniques. - Non-Toxic & Safe
Suitable for water, food-related systems, and cleanroom environments.
Technical Details of PVC Transparent End Cap
| Parameter | Specification / Description |
|---|---|
| Product Name | PVC Transparent End Cap |
| Material | High-Clarity Rigid PVC |
| Function | Closes and seals pipe ends |
| Transparency Level | 90%–95% light transmission |
| Available Sizes | 20 mm to 110 mm (other sizes on request) |
| Pressure Rating | PN6 – PN10 depending on diameter |
| Temperature Range | 0°C to 60°C continuous operation |
| Connection Type | Socket end for solvent cement welding |
| Wall Thickness | SDR 21 / SDR 17 / SDR 13.5 (size-based) |
| Chemical Resistance | Excellent resistance to acids, bases, salts & many chemicals |
| Corrosion Resistance | 100% corrosion-proof |
| Surface Finish | Smooth and clear, debris-resistant |
| Weight | Lightweight for easy handling |
| Applications | Labs, aquaculture, chemical dosing, pharma, testing lines, water treatment |
| Compliance Standards | Conforms to ASTM & ISO PVC fitting norms |
Customization & Processing Options
Customizations Option Available for PVC Transparent End Cap
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
