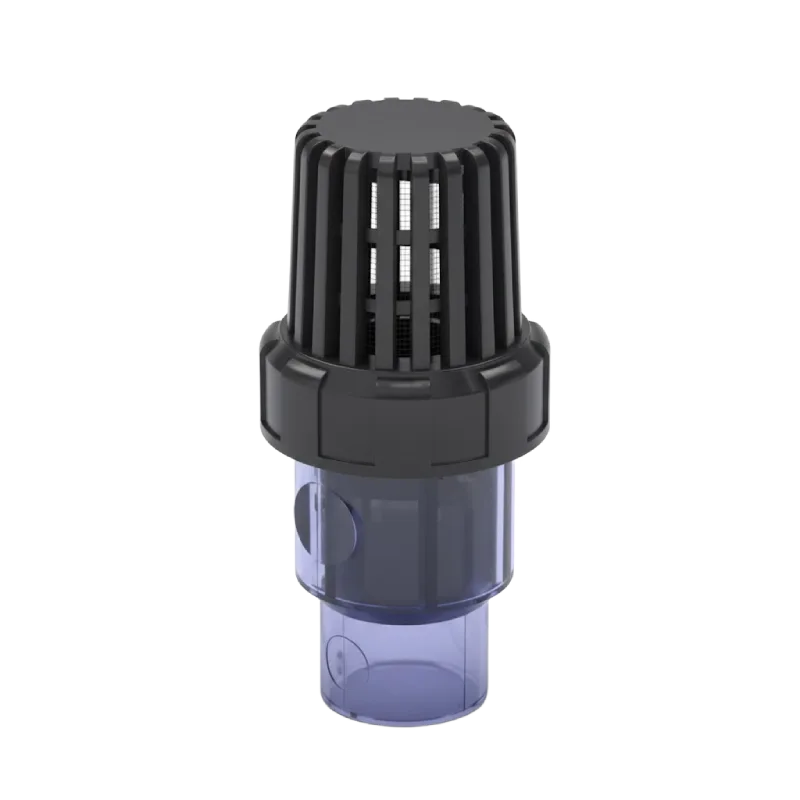

PVC Transparent Foot Valve
The PVC Transparent Foot Valve is a non-return valve designed to prevent backflow in suction lines while allowing users to visually inspect the internal operation. Made from high-transparency PVC, it enables clear observation of water, chemicals, or process fluids, making it ideal for sensitive applications such as laboratories, aquariums, chemical dosing systems, and water treatment plants.
It features a corrosion-resistant structure, precision-molded valve components, and a built-in strainer to prevent debris entry. The transparent design helps operators easily detect clogging, contamination, or valve malfunction without dismantling the system.
PVC Transparent Foot Valve
- Transparent design enables visual inspection of internal flow and valve movement.
- Integrated strainer prevents debris from entering suction lines.
- One-way flow mechanism ensures reliable non-return performance.
- Corrosion-resistant PVC construction ideal for chemicals and clean water systems.
- Lightweight and easy to install on vertical suction pipelines.
- Smooth opening and closing for efficient pump priming.
- Low-pressure drop due to optimized flow path.
- Suitable for laboratory, industrial, and aquaculture applications.
Technical Details of PVC Transparent Foot Valve
| Parameter | Specification |
|---|---|
| Product Name | PVC Transparent Foot Valve |
| Body Material | High-Transparency PVC |
| Strainer Material | Transparent or UV-Stabilized PVC |
| Seal Material | EPDM / FKM |
| Working Mechanism | Springless check-valve operation with bottom strainer |
| Connection Type | Socket / Threaded (ASTM, DIN, ISO Standards) |
| Available Sizes | ½" to 4" (DN15 to DN100) |
| Pressure Rating | PN6 – PN10 (Low to Medium Pressure) |
| Temperature Range | 0°C to 55°C |
| Flow Direction | Upward (vertical installation) |
| Application Medium | Water, light chemicals, low-viscosity fluidse |
| Transparency Level | Up to 90% visibility |
| Chemical Resistance | Excellent for acids, alkalis & non-organic chemicals |
| Standards Compliance | ASTM / DIN / ISO manufacturing standards |
Customization & Processing Options
Customizations Option Available for PVC Transparent Foot Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
