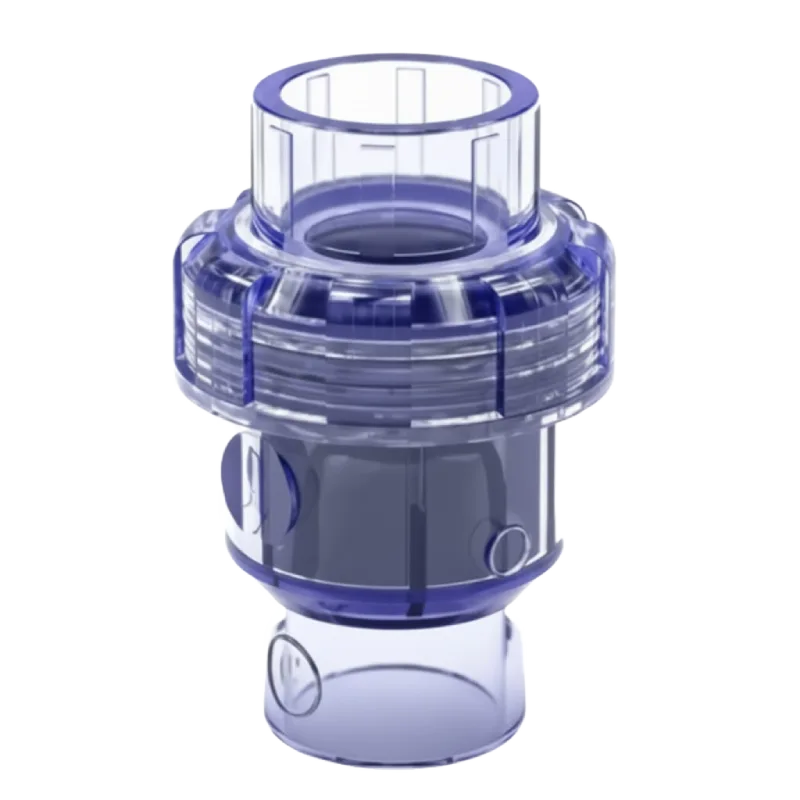

PVC Transparent Non Return Valve (NRV)
The PVC Transparent Non Return Valve (NRV) is a one-way flow control device designed to ensure smooth forward flow and prevent any backward movement of liquids within the pipeline. Made from high-clarity transparent PVC, this NRV provides complete visual inspection of internal operations, enabling users to monitor valve performance, detect blockages, and confirm flow direction in real-time.
Its lightweight, corrosion-resistant, and chemical-compatible body makes it ideal for water treatment systems, chemical dosing lines, aquaculture installations, laboratories, and industrial fluid handling applications. This transparent NRV is easy to install and requires minimal maintenance, offering long-term reliability in both horizontal and vertical pipelines.
PVC Transparent Non Return Valve (NRV)
- Clear transparent body for real-time visual monitoring of flow and valve operation.
- Reliable one-way flow mechanism prevents backflow and protects pumps, filters, and instruments.
- Corrosion-proof PVC construction ideal for water and chemical handling applications.
- Low-pressure drop ensures efficient fluid movement.
- Leak-resistant sealing with EPDM or FKM options for chemical compatibility.
- Lightweight and easy to install, suitable for compact systems.
- Available in multiple end connections such as socket, threaded, or flanged.
- Durable, non-metallic internal components resist rust and chemical reactions.
- Suitable for horizontal or vertical installation depending on design.
Technical Details of PVC Transparent Non Return Valve (NRV)
| Parameter | Specification |
|---|---|
| Product Name | PVC Transparent Non Return Valve (NRV) |
| Body Material | Transparent PVC (High-Clarity Grade) |
| Valve Type | NRV – Ball Type / Spring Type / Swing Type |
| Internal Components | PVC / PP / Optional Stainless-Free Polymer |
| Seal Material | EPDM / FKM |
| Connection Options | Socket / Threaded / Flanged |
| Available Sizes | 1/2" to 4" |
| Pressure Rating | Up to 10 bar (depending on size & type) |
| Temperature Range | 0°C to 50°C |
| Flow Direction | Unidirectional |
| Installation Orientation | Vertical (ball type) / Horizontal or vertical (swing type) |
| Transparency Level | 80%–90% clear visibility |
| Chemical Compatibility | Suitable for acids, alkalis, treated water, and light industrial chemicals |
| Standards Followed | ASTM / DIN / ISO manufacturing guidelines |
| Typical Applications | Water treatment, filtration, chemical dosing, aquaculture, lab pipeline systems |
Customization & Processing Options
Customizations Option Available for PVC Transparent Non Return Valve (NRV)
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
