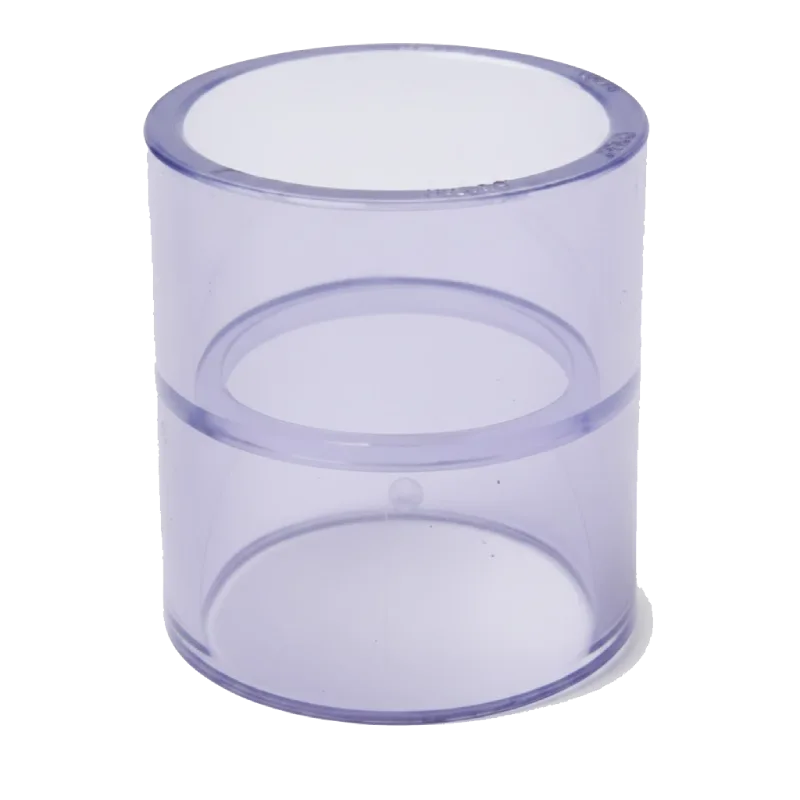

PVC Transparent Socket
The PVC Transparent Socket is a high-clarity coupling fitting used to join two PVC pipes in a straight line while allowing full visibility of the flow and internal condition of the pipeline. Manufactured from premium-grade transparent PVC, this socket ensures strong, leak-proof connections using solvent cement while offering exceptional chemical resistance and durability.
Its transparent design makes it ideal for applications requiring continuous visual monitoring, such as laboratories, aquaculture, research facilities, water treatment plants, chemical dosing systems, and inspection pipelines. The PVC Transparent Socket is lightweight, corrosion-proof, and easy to install, making it suitable for both industrial and commercial use.
PVC Transparent Socket
- High Transparency for Visual Flow Monitoring
Allows inspection of liquid movement, blockage, contamination, or air bubbles inside the line. - Strong and Leak-Proof Bonding
Compatible with solvent cement for secure pipe connections. - Excellent Chemical & Corrosion Resistance
Suitable for acids, alkalis, and chemical solutions. - Smooth Internal Surface
Reduces pressure drop and prevents sediment accumulation. - Lightweight & Easy to Install
Ideal for systems requiring frequent inspection or maintenance. - Non-Toxic and Safe
Suitable for water systems, aquariums, and sensitive environments.
Technical Details of PVC Transparent Socket
| Parameter | Specification / Description |
|---|---|
| Product Name | PVC Transparent Socket |
| Material | High-Clarity Rigid PVC |
| Transparency | 90–95% light transmission |
| Available Sizes | 20 mm – 110 mm (custom sizes available) |
| Connection Type | Socket (solvent cement joint) |
| Pressure Rating | PN6 – PN10 (depending on size) |
| Temperature Range | 0°C to 60°C continuous operation |
| Wall Thickness | SDR 21 / SDR 17 / SDR 13.5 (size dependent) |
| Chemical Resistance | Excellent resistance to acids, alkalis, salts, and many industrial chemicals |
| Corrosion Resistance | 100% corrosion-proof |
| Internal Surface Finish | Smooth and debris-resistant |
| Installation Method | Solvent cement bonding |
| Applications | Laboratories, aquaculture, water treatment, transparent flow systems, chemical dosing lines |
| Standards Compliance | ASTM / ISO PVC fitting dimensions |
Customization & Processing Options
Customizations Option Available for PVC Transparent Socket
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
