PVC Transparent Union
The PVC Transparent Union is a high-clarity, detachable pipe fitting designed for quick installation, maintenance, and inspection of transparent PVC pipeline systems. It consists of three main parts—two end connectors and a central union nut—allowing the pipeline to be easily disassembled without cutting or damaging the pipe.
Made from rigid transparent PVC, this union provides excellent visibility, enabling operators to clearly monitor flow conditions, detect impurities, observe chemical reactions, and check for blockages. It is ideal for laboratory setups, aquaculture systems, water treatment plants, chemical dosing lines, and filtration systems where visual monitoring is essential.

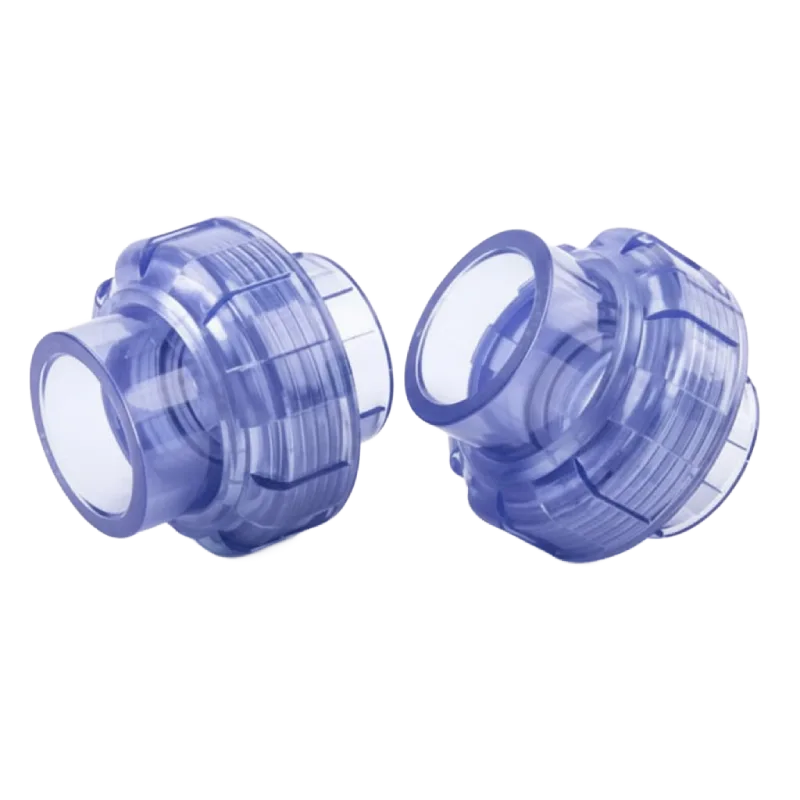

PVC Transparent Union
- High-transparency construction for complete visibility of fluid flow.
- Three-piece union design enables easy installation, cleaning, or replacement.
- Leak-proof sealing with durable O-ring for long-term performance.
- Excellent chemical resistance, suitable for acids, alkalis, and water-based solutions.
- Smooth internal bore ensures minimal friction loss and prevents sediment buildup.
- Lightweight yet strong, ideal for low to medium pressure systems.
- Corrosion-resistant material, suitable for harsh environments.
- Compatible with transparent pipes for a complete clear pipeline system.
Technical Details of PVC Transparent Union
| Parameter | Specification / Description |
|---|---|
| Product Name | PVC Transparent Union |
| Material | High-Clarity Rigid Transparent PVC |
| Design Type | 3-Piece Union (Socket × Union Nut × O-Ring) |
| Connection Type | Solvent Weld Socket Ends |
| Available Sizes | 20 mm to 110 mm (custom sizes available) |
| Visibility / Transparency | 90–95% light transmission |
| Pressure Rating | PN6 – PN10 (depends on size) |
| Temperature Range | 0°C to 60°C |
| Sealing Material | EPDM / FKM O-ring |
| Chemical Compatibility | Resistant to mild acids, alkalis, salts, and treated water |
| Corrosion Resistance | Fully corrosion-proof |
| Installation Method | Solvent cement bonding + union tightening |
| Typical Applications | Labs, aquaculture, filtration units, chemical dosing lines, inspection pipelines |
| Compliance Standards | ASTM / ISO / DIN for PVC fittings |
Customization & Processing Options
Customizations Option Available for PVC Transparent Union
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
