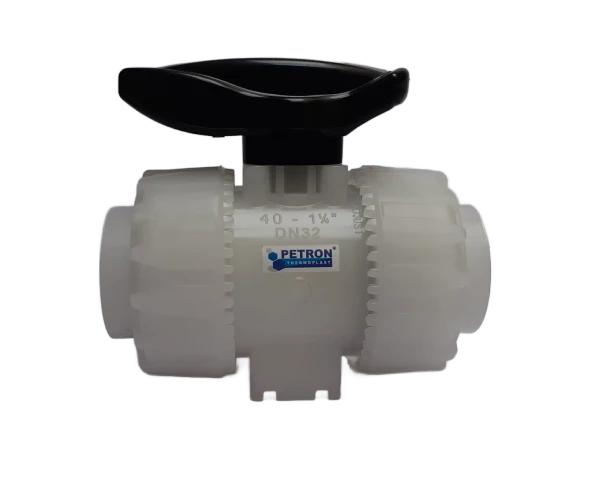

PVDF Ball Valve
The PVDF Ball Valve is a high-performance, corrosion-resistant valve engineered to provide precise flow control in aggressive chemical and high-purity applications. Made from virgin-grade Polyvinylidene Fluoride (PVDF), this valve offers outstanding resistance to acids, bases, solvents, and high temperatures. It is ideal for use in the chemical processing, water treatment, pharmaceutical, and semiconductor industries where reliability, chemical resistance, and cleanliness are critical.
PVDF Ball Valve
- Superior Chemical Resistance: Suitable for handling aggressive fluids, including highly corrosive acids and bases.
- High Purity Construction: Manufactured from virgin PVDF for contamination-free performance in ultrapure environments.
- Durable and Lightweight: Rigid structure with lightweight design, resistant to UV and weather exposure.
- Bubble-Tight Sealing: Precision-machined ball and PTFE seals ensure leak-proof operation.
- Easy Operation: Quarter-turn operation with manual handle or actuator-ready design.
- Low Maintenance: Corrosion-resistant internals reduce wear and extend operational life.
- Automation Compatibility: Available with electric or pneumatic actuation for remote operation.
- Long-Term Performance: Withstands high thermal loads and frequent cycling without degradation.
Technical Details of PVDF Ball Valve
| Specification | Details |
|---|---|
| Body Material | PVDF (Polyvinylidene Fluoride) |
| Ball Material | PVDF or PTFE-coated stainless steel (optional) |
| Seat/Seal Material | PTFE, EPDM, or FKM (Viton) |
| Size Range | 1/2″ to 4″ (DN15 to DN100) |
| Connection Types | Threaded (NPT/BSP), Socket Weld, Flanged |
| Operating Pressure | Up to 150 PSI (10 Bar) |
| Operating Temperature | -20°C to +120°C |
| Flow Control | Quarter-turn (On/Off) |
| Mounting | ISO 5211-compatible for actuation |
| Compliance | RoHS, REACH, FDA (on request) |

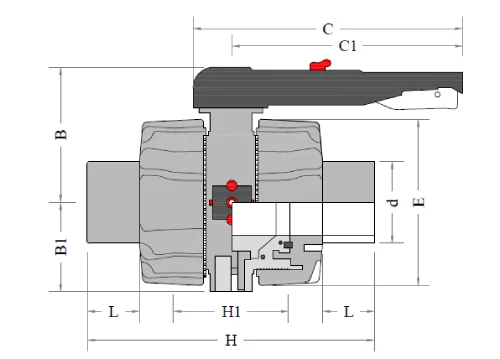

| d | DN | PN | B1 | C | C1 | E | H | H1 |
|---|---|---|---|---|---|---|---|---|
| 16 | 10 | 16 | 29 | 67 | 40 | 54 | 102 | 65 |
| 20 | 15 | 16 | 29 | 67 | 40 | 54 | 102 | 65 |
| 25 | 20 | 16 | 34.5 | 85 | 49 | 65 | 114 | 70 |
| 32 | 25 | 16 | 39 | 85 | 49 | 73 | 126 | 78 |
| 40 | 32 | 16 | 46 | 108 | 64 | 86 | 141 | 88 |
| 50 | 40 | 16 | 52 | 108 | 64 | 98 | 164 | 93 |
| 63 | 50 | 16 | 62 | 134 | 76 | 122 | 199 | 111 |
| 75 | 65 | 16 | 87 | 225 | 175 | 162 | 213 | 133 |
| 90 | 80 | 16 | 105 | 327 | 272 | 202 | 239 | 149 |
| 110 | 100 | 16 | 129 | 385 | 330 | 236 | 268 | 167 |
-
d – Outer Diameter of Pipe (mm)
-
DN – Nominal Diameter (Diameter Nominal)
-
PN – Pressure Nominal (Pressure Rating, usually in bar)
-
B1 – Thickness or Width of Flange (mm)
-
C – Overall Length of Assembly (mm)
-
C1 – Bolt Circle Diameter or Inner Length (mm)
-
E – Thickness of Hub/Flange (mm)
-
H – Total Height (mm)
-
H1 – Height to Center or Raised Face Height (mm)
| Specification | Details |
| Body Material | PVDF (Polyvinylidene Fluoride) |
| Ball Material | PVDF or PTFE-coated stainless steel (optional) |
| Seat/Seal Material | PTFE, EPDM, or FKM (Viton) |
| Size Range | 1/2″ to 4″ (DN15 to DN100) |
| Connection Types | Threaded (NPT/BSP), Socket Weld, Flanged |
| Operating Pressure | Up to 150 PSI (10 Bar) |
| Operating Temperature | -20°C to +120°C |
| Flow Control | Quarter-turn (On/Off) |
| Mounting | ISO 5211-compatible for actuation |
| Compliance | RoHS, REACH, FDA (on request) |
Customization & Processing Options
Customizations Option Available for PVDF Ball Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
