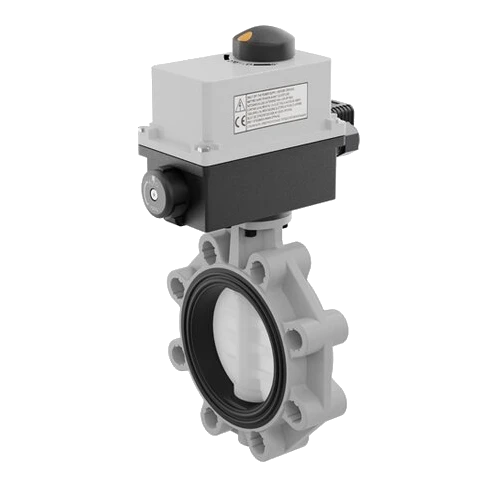

PVDF Butterfly Electrically Actuated Valve
The PVDF Butterfly Electrically Actuated Valve is an advanced automated valve solution engineered for use in highly corrosive and chemically aggressive environments. Manufactured from high-purity Polyvinylidene Fluoride (PVDF), this valve offers excellent chemical resistance and durability. It is integrated with an electric actuator that enables precise remote operation and flow control, making it ideal for process automation in chemical plants, water treatment facilities, and high-purity fluid systems.
PVDF Butterfly Electrically Actuated Valve
- Superior Chemical Resistance: PVDF body and components resist acids, alkalis, and other corrosive substances.
- Electric Actuation: Provides automated, remote control of flow with precise positioning capabilities.
- Tight Shut-Off: High-quality seat materials ensure leak-free operation in both directions.
- Compact and Efficient: Space-saving design with low power consumption actuator.
- Fail-Safe Options Available: Actuators can include fail-close or fail-open features with battery backup.
- Position Feedback: Optional limit switches and position indicators for advanced monitoring and control.
- Flexible Installation: Suitable for horizontal or vertical mounting in any industrial piping system.
- Low Maintenance: Durable materials and reliable actuator performance minimize servicing needs.
Technical Details of PVDF Butterfly Electrically Actuated Valve
| Technical Parameter | Specification |
|---|---|
| Body Material | PVDF (Polyvinylidene Fluoride) |
| Disc Material | PVDF or reinforced PVDF |
| Seat Material | EPDM, FKM, or PTFE |
| Valve Type | Electrically Actuated Butterfly Valve |
| Actuator Type | Electric – ON/OFF or Modulating |
| Voltage Options | 24V DC, 110V AC, 230V AC |
| Size Range | 2″ to 12″ (50 mm to 300 mm) |
| Pressure Rating | Up to 10 bar |
| Temperature Range | -20°C to +100°C (depending on seat material) |
| Control Signal | 4–20 mA, 0–10V, or digital (for modulating type) |
| Enclosure Rating | IP65/IP67 (weatherproof, optional explosion-proof) |
| Mounting Position | Any (upright preferred) |
| Standards Compliance | ISO, ANSI, DIN (flange type dependent) |

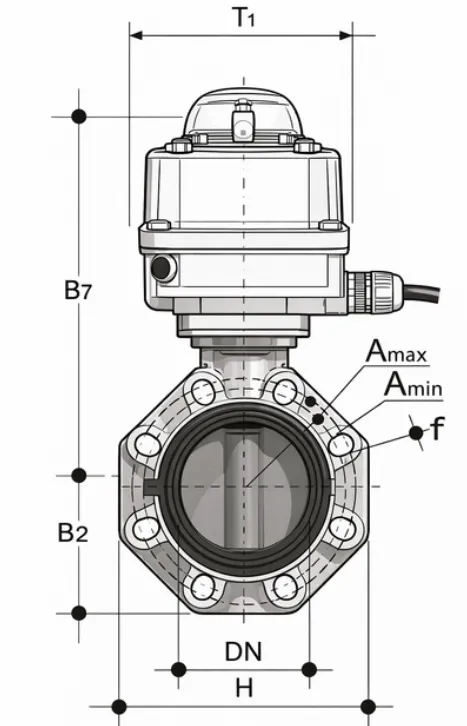

| D | DN | PN | B2 | B7 | H | T1 | f |
|---|---|---|---|---|---|---|---|
| 50 | 40 | 16 | 60 | 253 | 132 | 92 | 18 |
| 63 | 50 | 16 | 70 | 259 | 147 | 92 | 18 |
| 75 | 65 | 10 | 80 | 266 | 165 | 92 | 18 |
| 90 | 80 | 10 | 93 | 308 | 185 | 128 | 22 |
| 125 | 140 | 10 | 120 | 425 | 240 | 170 | 22 |
| 160 | 150 | 10 | 134 | 438 | 268 | 170 | 22 |
| 225 | 200 | 10 | 161 | 485 | 323 | 170 | 22 |
| 280 | 250 | 10 | 210 | 597 | 405 | 170 | 26 |
| 315 | 300 | 8 | 245 | 654 | 475 | 170 | 26 |
DN – Diameter Nominal Nominal pipe/valve size (mm)
PN – Pressure Nominal Nominal pressure rating (bar)
D – Diameter Outer diameter of the body/flange
H – Height Total vertical height
T1 – Thickness / Length Face-to-face width
f – Face heightFlange sealing surface height
| Technical Parameter | Specification |
| Body Material | PVDF (Polyvinylidene Fluoride) |
| Disc Material | PVDF or reinforced PVDF |
| Seat Material | EPDM, FKM, or PTFE |
| Valve Type | Electrically Actuated Butterfly Valve |
| Actuator Type | Electric – ON/OFF or Modulating |
| Voltage Options | 24V DC, 110V AC, 230V AC |
| Size Range | 2″ to 12″ (50 mm to 300 mm) |
| Pressure Rating | Up to 10 bar |
| Temperature Range | -20°C to +100°C (depending on seat material) |
| Control Signal | 4–20 mA, 0–10V, or digital (for modulating type) |
| Enclosure Rating | IP65/IP67 (weatherproof, optional explosion-proof) |
| Mounting Position | Any (upright preferred) |
| Standards Compliance | ISO, ANSI, DIN (flange type dependent) |
Customization & Processing Options
Customizations Option Available for PVDF Butterfly Electrically Actuated Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
