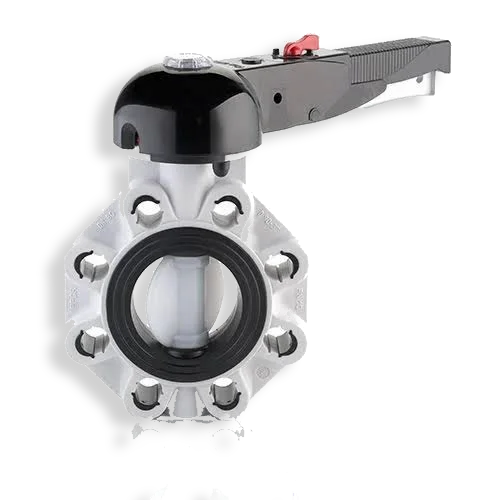

PVDF Butterfly Valve LUG Type
The PVDF Butterfly Valve LUG Type is a durable, corrosion-resistant valve designed for efficient flow regulation and isolation in chemical and industrial piping systems. Made from high-quality Polyvinylidene Fluoride (PVDF), this valve delivers excellent chemical resistance and mechanical strength, making it suitable for aggressive media and harsh environments. The lug-type design allows for easy installation between flanges and provides the ability to isolate one side of the pipeline without disturbing the other. Ideal for applications in chemical processing, water treatment, and semiconductor industries.
PVDF Butterfly Valve LUG Type
- Robust Material: Constructed with PVDF for superior chemical and corrosion resistance.
- Lug Type Design: Allows one-side pipeline disconnection without draining the system.
- Compact and Lightweight: Easy to install and handle in various piping configurations.
- Tight Shut-Off: Precision-engineered seat provides bubble-tight sealing to prevent leakage.
- Versatile Connections: Compatible with standard flange sizes for convenient installation.
- Manual or Automated Operation: Can be equipped with manual lever, gear operator, or actuators.
- Low Maintenance: Resistant to wear and corrosion, reducing downtime and maintenance costs.
- Wide Application Range: Suitable for a variety of fluids including acids, bases, and solvents.
| Technical Parameter | Specification |
| Body Material | PVDF (Polyvinylidene Fluoride) |
| Disc Material | PVDF or reinforced PVDF |
| Seat Material | PTFE, FKM, or EPDM (application dependent) |
| Valve Type | Butterfly Valve, Lug Type |
| Connection Type | Lug (Threaded bolt holes for flange mounting) |
| Size Range | 2″ to 12″ (50 mm to 300 mm) |
| Pressure Rating | Up to 10 bar (depending on size and design) |
| Temperature Range | -20°C to +100°C (depending on seat material) |
| Operation | Manual lever, Gear operated, or Automated |
| Mounting Position | Any position |
| Standards Compliance | ISO, ANSI, DIN (model dependent) |
Customization & Processing Options
Customizations Option Available for PVDF Butterfly Valve LUG Type
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
