PVDF Butterfly Valve
The PVDF Butterfly Valve is a high-performance flow control valve engineered for demanding industrial applications requiring exceptional chemical resistance, purity, and thermal stability. Constructed from durable Polyvinylidene Fluoride (PVDF), this valve is designed to handle corrosive and high-purity fluids with precision and reliability. It is widely used in sectors such as chemical processing, pharmaceuticals, water treatment, and semiconductor manufacturing, where performance and longevity are critical.
PVDF Butterfly Valve
- Excellent Chemical Resistance: Resistant to a wide range of corrosive chemicals including acids, bases, and solvents.
- High Purity Material: Ideal for applications requiring contamination-free flow, such as in semiconductor and pharmaceutical industries.
- Thermal Endurance: Maintains mechanical and sealing integrity in temperatures up to 120°C.
- Durable Construction: Rigid PVDF body ensures long service life even in harsh environments.
- Low Operating Torque: Smooth and easy operation with quarter-turn handle or actuator.
- Leak-Proof Sealing: High-quality EPDM or FKM (Viton) seats ensure a tight seal, preventing leaks.
- Versatile Mounting: Available with manual handle, pneumatic, or electric actuators for automation.
- UV and Weather Resistant: Suitable for outdoor or exposed installations.
Technical Details of PVDF Butterfly Valve
| Specification | Details |
|---|---|
| Body Material | PVDF (Polyvinylidene Fluoride) |
| Disc Material | PVDF |
| Seat Material | EPDM, FKM (Viton), or PTFE (optional) |
| Size Range | 1½” to 12″ (DN40 to DN300) |
| Connection Type | Wafer, Lug, or Flanged |
| Operating Pressure | Up to 150 PSI (10 Bar) |
| Operating Temperature | -20°C to +120°C |
| Actuation Options | Manual, Pneumatic, Electric |
| Compliance Standards | ISO 5211, ANSI, DIN, JIS (flange compatibility) |
| Flow Control | Quarter-turn (90° rotation) |

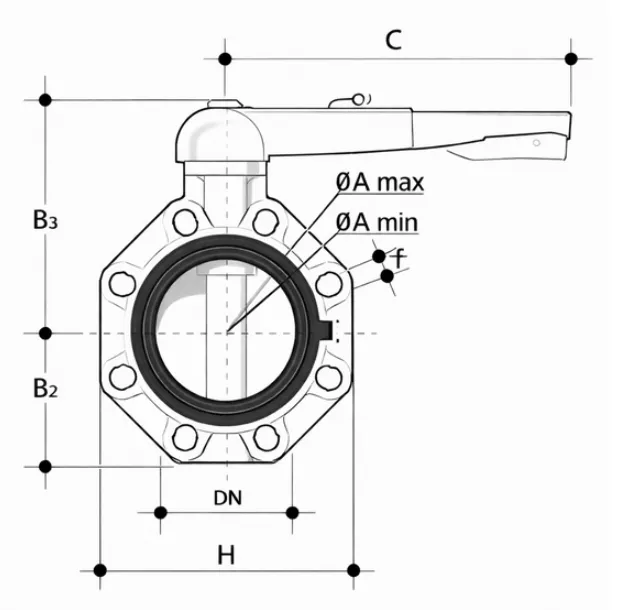

| D | DN | PN | B2 | B3 | C | H |
|---|---|---|---|---|---|---|
| 50 | 40 | 16 | 60 | 137 | 175 | 132 |
| 63 | 50 | 16 | 70 | 143 | 175 | 147 |
| 75 | 65 | 10 | 80 | 164 | 175 | 165 |
| 90 | 80 | 10 | 93 | 178 | 175 | 185 |
| 110 | 100 | 10 | 107 | 192 | 272 | 211 |
| 140 | 125 | 10 | 120 | 212 | 330 | 240 |
| 160 | 150 | 10 | 134 | 225 | 330 | 268 |
| 225 | 200 | 10 | 161 | 272 | 420 | 323 |
DN : Diameter Nominal
PN : Pressure Nominal
D: Diameter
B2: Lower Body Height
B3: Upper Body Height
C: Handle/Lever Length
Customization & Processing Options
Customizations Option Available for PVDF Butterfly Valve
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
