PVDF Elbow 45°
The PVDF Elbow 45° is a high-performance pipe fitting designed to redirect flow at a 45-degree angle within piping systems. Made from virgin-grade Polyvinylidene Fluoride (PVDF), this fitting offers excellent chemical resistance, mechanical strength, and thermal stability. It is ideal for corrosive and high-purity fluid applications in industries such as chemicals, pharmaceuticals, water treatment, and food processing.
PVDF Elbow 45°
Key Feature of PVDF Elbow 45°
- Chemical Resistance: Resists aggressive acids, alkalis, and organic solvents.
- Precision Flow Direction: Enables smooth directional changes with minimal pressure loss.
- High Thermal Endurance: Withstands temperatures up to 140°C.
- UV & Weather Resistant: Durable in outdoor and corrosive environments.
- Hygienic and Pure: Suitable for ultra-pure water and sensitive processes.
- Lightweight and Strong: Easy to install without compromising strength.
- Multiple Connection Types: Available in socket weld, threaded, or flanged configurations.
Technical Details of PVDF Elbow 45°
| Specification | Details |
|---|---|
| Product Name | PVDF Elbow 45° |
| Material | Polyvinylidene Fluoride (PVDF) |
| Angle | 45 Degrees |
| Size Range | 20mm to 315mm (custom sizes available) |
| Temperature Range | -40°C to +140°C |
| Pressure Rating | Up to 16 bar (varies by size) |
| Connection Types | Socket weld, threaded, flanged |
| Color | Natural White / Translucent |
| Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| Applications | Chemical processing, water treatment, food, pharmaceutical, and semiconductor industries |

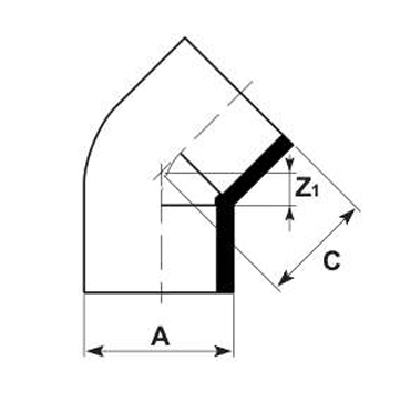

Technical Measurement of PVDF Elbow 45°
| d | PN | A | C | Z1 |
|---|---|---|---|---|
| 20 | 16 | 28 | 22 | 7 |
| 25 | 16 | 33 | 25 | 9 |
| 32 | 16 | 42 | 30 | 12 |
| 40 | 16 | 51 | 37 | 16 |
| 50 | 16 | 63 | 43 | 19 |
| 63 | 16 | 79 | 52 | 25 |
| 75 | 16 | 88 | 61 | 30 |
| 90 | 16 | 105 | 73 | 37 |
| 110 | 16 | 127 | 87 | 46 |
- d (Diameter)
- PN (Pressure Nominal)
- A (Length from end to centerline)
- C (Length from bottom to centerline)
- Z1 (Insertion depth or socket length)
| Specification | Details |
| Product Name | PVDF Elbow 45° |
| Material | Polyvinylidene Fluoride (PVDF) |
| Angle | 45 Degrees |
| Size Range | 20mm to 315mm (custom sizes available) |
| Temperature Range | -40°C to +140°C |
| Pressure Rating | Up to 16 bar (varies by size) |
| Connection Types | Socket weld, threaded, flanged |
| Color | Natural White / Translucent |
| Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| Applications | Chemical processing, water treatment, food, pharmaceutical, and semiconductor industries |
Customization & Processing Options
Customizations Option Available for PVDF Elbow 45°
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
