PVDF End Cap
The PVDF End Cap is a precision-molded fitting used to securely seal the end of a PVDF piping system. Manufactured from Polyvinylidene Fluoride (PVDF), this end cap is ideal for high-purity and corrosive fluid applications. Its excellent chemical resistance, thermal stability, and mechanical strength make it a dependable solution for industries such as chemical processing, semiconductor fabrication, pharmaceuticals, and water treatment where leak prevention and durability are essential.
PVDF End Cap
Key Feature of PVDF End Cap
- Chemical Resistance: Withstands aggressive acids, alkalis, and solvents without degradation.
- High Purity: Manufactured from virgin-grade PVDF for use in ultrapure environments.
- Leak-Proof Seal: Provides a reliable seal at the pipe termination point.
- UV and Weather Resistant: Suitable for both indoor and outdoor installations.
- Thermal Stability: Maintains performance in elevated temperatures up to 120°C.
- Durable and Long-Lasting: Resistant to wear, corrosion, and environmental aging.
- Easy Installation: Compatible with various welding methods (socket, butt, or fusion).
Technical Details of PVDF End Cap
| Specification | Details |
|---|---|
| Material | Virgin PVDF (Polyvinylidene Fluoride) |
| Size Range | 1/2″ to 6″ (DN15 to DN150) |
| Connection Type | Socket weld, butt weld, fusion-weld compatible |
| Operating Pressure | Up to 16 bar (232 PSI) |
| Temperature Range | -20°C to +120°C |
| Color | Natural white / translucent |
| Compliance Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| Certifications | RoHS, REACH, FDA, USP Class VI (on request) |

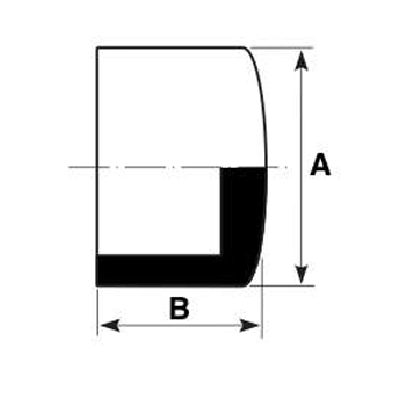

Technical Measurement of PVDF End Cap
| d | PN | A | B | Z |
|---|---|---|---|---|
| 20 | 16 | 28 | 36 | 7 |
| 25 | 16 | 33 | 40 | 8 |
| 32 | 16 | 42 | 44 | 8 |
| 40 | 16 | 51 | 49 | 8 |
| 50 | 16 | 63 | 55 | 8 |
| 63 | 16 | 77 | 64 | 9 |
| 75 | 16 | 90 | 72 | 10 |
| 90 | 16 | 108 | 79 | 8 |
| 110 | 16 | 131 | 94 | 1 |
- d (Diameter)
- PN (Pressure Nominal)
- A (Length from end to centerline)
- C (Length from bottom to centerline)
- Z1 (Insertion depth or socket length)
| Specification | Details |
| Material | Virgin PVDF (Polyvinylidene Fluoride) |
| Size Range | 1/2″ to 6″ (DN15 to DN150) |
| Connection Type | Socket weld, butt weld, fusion-weld compatible |
| Operating Pressure | Up to 16 bar (232 PSI) |
| Temperature Range | -20°C to +120°C |
| Color | Natural white / translucent |
| Compliance Standards | ASTM D3222, DIN 8077/8078, ISO 10931 |
| Certifications | RoHS, REACH, FDA, USP Class VI (on request) |
Customization & Processing Options
Customizations Option Available for PVDF End Cap
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
