PVDF Equal Tee
The PVDF Equal Tee is a precision-molded pipe fitting used to join three PVDF pipes of the same diameter, forming a T-shaped connection. It is manufactured from high-purity Polyvinylidene Fluoride (PVDF), offering excellent resistance to aggressive chemicals, high temperatures, and UV exposure. This fitting is ideal for industrial systems that require corrosion-resistant, leak-proof, and hygienic flow distribution, such as in chemical processing, semiconductor manufacturing, pharmaceutical production, and water treatment plants.
PVDF Equal Tee
Key Feature of PVDF Equal Tee
- High Chemical Resistance: Withstands harsh chemicals including strong acids, alkalis, and solvents.
- High Purity Construction: Suitable for ultrapure and contamination-sensitive applications.
- Thermal Stability: Can operate in elevated temperature environments without deformation.
- Corrosion-Proof: Long-lasting performance in corrosive environments.
- Precision Fit: Ensures leak-free and stable connections in piping systems.
- UV Resistant: Ideal for both indoor and outdoor installations.
- Hygienic Design: Smooth internal surface prevents scale buildup and contamination.
Technical Details of PVDF Equal Tee
| Specification | Details |
|---|---|
| Material | PVDF (Polyvinylidene Fluoride), virgin-grade |
| Sizes Available | 1/2″ to 6″ (DN15 to DN150) |
| Connection Type | Socket weld, butt weld, or fusion-weld compatible |
| Operating Pressure | Up to 16 bar (232 PSI), varies by size/temp |
| Temperature Range | -20°C to +120°C |
| Standard Compliance | ASTM D3222, DIN 8077/8078, ISO 10931 |
| Color | Natural white or translucent |
| Certifications | RoHS, REACH, FDA, USP Class VI (on request) |

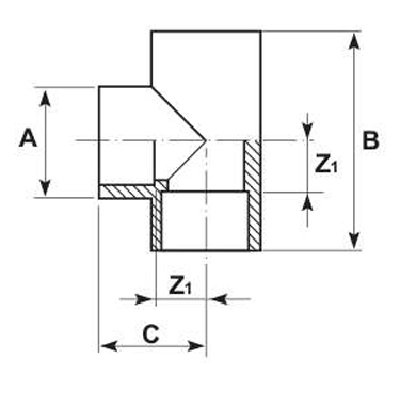

Technical Measurement of PVDF Equal Tee
| d | PN | A | C | Z1 |
|---|---|---|---|---|
| 16 | 16 | 22 | 23 | 10 |
| 20 | 16 | 28 | 27 | 13 |
| 25 | 16 | 33 | 32 | 16 |
| 32 | 16 | 41 | 37 | 19 |
| 40 | 16 | 51 | 43 | 22 |
| 50 | 16 | 63 | 52 | 29 |
| 63 | 16 | 79 | 63 | 35 |
| 75 | 16 | 93 | 71 | 40 |
| 90 | 16 | 109 | 82 | 46 |
| 110 | 16 | 133 | 99 | 58 |
- d (Diameter)
- PN (Pressure Nominal)
- A (Length from end to centerline)
- C (Length from bottom to centerline)
- Z1 (Insertion depth or socket length)
Customization & Processing Options
Customizations Option Available for PVDF Equal Tee
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
