PVDF Solenoid Valve 2/2 Way
The PVDF Solenoid Valve 2/2 Way is an electrically actuated valve designed to control the flow of corrosive and high-purity fluids with precision and reliability. Constructed from Polyvinylidene Fluoride (PVDF), it provides excellent chemical resistance and durability in aggressive environments. The valve features a two-port, two-way design (2/2 way), allowing for simple on/off flow control. It is widely used in chemical processing, water treatment, pharmaceuticals, and semiconductor industries where automated fluid control is critical.
PVDF Solenoid Valve 2/2 Way
- High Chemical Resistance: PVDF body and wetted parts resist aggressive acids, alkalis, and solvents.
- 2/2 Way Configuration: Simple on/off control with two ports (inlet and outlet).
- Electric Actuation: Fast and reliable solenoid-driven operation for automation.
- Compact and Lightweight: Easy integration into existing systems with minimal space requirements.
- Bubble-Tight Shut-Off: PTFE or FKM seals ensure leak-free operation.
- Low Power Consumption: Efficient coil design reduces energy usage.
- Multiple Voltage Options: Available in 12V DC, 24V DC, 110V AC, 230V AC.
- IP65 or Higher Protection: Suitable for harsh industrial environments.
- Fail-Safe Design: Normally closed or normally open options available.
Technical Details of PVDF Solenoid Valve 2/2 Way
| Technical Parameter | Specification |
|---|---|
| Body Material | PVDF (Polyvinylidene Fluoride) |
| Seal Material | PTFE or FKM (fluoroelastomer) |
| Valve Type | 2/2 Way Solenoid Valve |
| Connection Type | Threaded (NPT, BSP), Socket Weld, or Flanged |
| Size Range | 1/4″ to 1″ (6 mm to 25 mm) |
| Pressure Rating | Up to 6 bar |
| Temperature Range | -10°C to +80°C (depending on seal material) |
| Voltage Options | 12V DC, 24V DC, 110V AC, 230V AC |
| Operation Mode | Normally Closed (NC) or Normally Open (NO) |
| Response Time | 20-50 milliseconds |
| Enclosure Protection | IP65 or higher |
| Standards Compliance | CE, RoHS, UL (depending on model) |

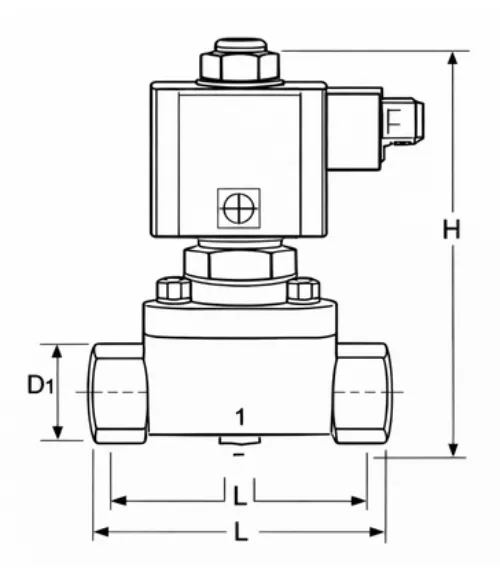

| Port Size | D1 | PN | L | H | H1 | Coil Width | Coil Depth |
|---|---|---|---|---|---|---|---|
| ¼" BSP | 12 | 2 | 52 | 90 | 40 | 38 | 45 |
| ⅜" BSP | 15 | 2 | 58 | 95 | 42 | 38 | 45 |
| ½" BSP | 20 | 2 | 70 | 105 | 48 | 38 | 45 |
D1 – Port diameter
L – Face-to-face length (straight-through flow path)
H – Overall height including solenoid coil
H1– Valve body height (without coil)
| Technical Parameter | Specification |
| Body Material | PVDF (Polyvinylidene Fluoride) |
| Seal Material | PTFE or FKM (fluoroelastomer) |
| Valve Type | 2/2 Way Solenoid Valve |
| Connection Type | Threaded (NPT, BSP), Socket Weld, or Flanged |
| Size Range | 1/4″ to 1″ (6 mm to 25 mm) |
| Pressure Rating | Up to 6 bar |
| Temperature Range | -10°C to +80°C (depending on seal material) |
| Voltage Options | 12V DC, 24V DC, 110V AC, 230V AC |
| Operation Mode | Normally Closed (NC) or Normally Open (NO) |
| Response Time | 20-50 milliseconds |
| Enclosure Protection | IP65 or higher |
| Standards Compliance | CE, RoHS, UL (depending on model) |
Customization & Processing Options
Customizations Option Available for PVDF Solenoid Valve 2/2 Way
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
