PVDF Spectacle Blind
A PVDF Spectacle Blind is a safety device used in piping systems to isolate sections of the pipeline or to perform maintenance safely. Made from Polyvinylidene Fluoride (PVDF), this type of spectacle blind is especially suitable for highly corrosive and high-purity applications. It consists of two metal discs joined together—one is a solid plate that blocks flow, and the other is a ring that allows flow. The unit is rotated in position as required.

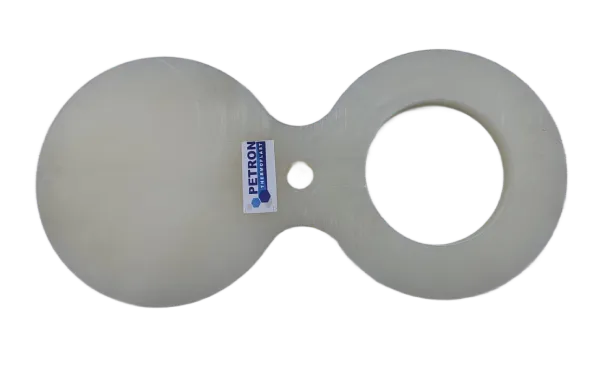

PVDF Spectacle Blind
Key Feature of PVDF Spectacle Blind
- Superior Chemical Resistance: PVDF offers excellent resistance to acids, bases, solvents, and corrosive gases, making it ideal for aggressive fluid systems.
- High Temperature Stability: Can withstand continuous temperatures up to 140°C (284°F) without compromising integrity.
- UV & Weather Resistant: Excellent performance in outdoor or UV-exposed environments.
- Zero Leakage Isolation: Ensures complete flow shutoff when the solid side is in place.
- Durable & Long-Lasting: PVDF is highly durable, offering low maintenance and long service life in industrial systems.
- Lightweight Design: Easier to install and handle compared to metallic alternatives.
| Parameter | Details |
| Material | Virgin PVDF (Polyvinylidene Fluoride) |
| Type | Spectacle Blind (Paddle & Spacer) |
| Size Range | DN 15 to DN 300 (½” to 12”) or custom sizes |
| Operating Pressure | Up to 10 bar (145 psi), depending on size |
| Temperature Range | -20°C to +140°C |
| Standard Compliance | ANSI, DIN, ISO standards |
| Connection Type | Flanged (Drilled as per customer spec) |
| Color | Natural white or translucent PVDF |
| Applications | Chemical processing, water treatment, semiconductor, pharmaceutical, and corrosive fluid systems |
Customization & Processing Options
Customizations Option Available for PVDF Spectacle Blind
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
