ENGINEERING PIPING SYSTEM
PVDF Pipe Fittings
At Petron Thermoplast FZ LLC, we are one of the leading suppliers of PVDF pipe fittings in the UAE, providing industrial-grade solutions engineered for extreme chemical resistance, purity, and durability. Our PVDF (Polyvinylidene Fluoride) fittings are designed to handle aggressive chemicals, high temperatures, and demanding process environments found in industries like chemical processing, water treatment, pharmaceuticals, and semiconductor manufacturing.

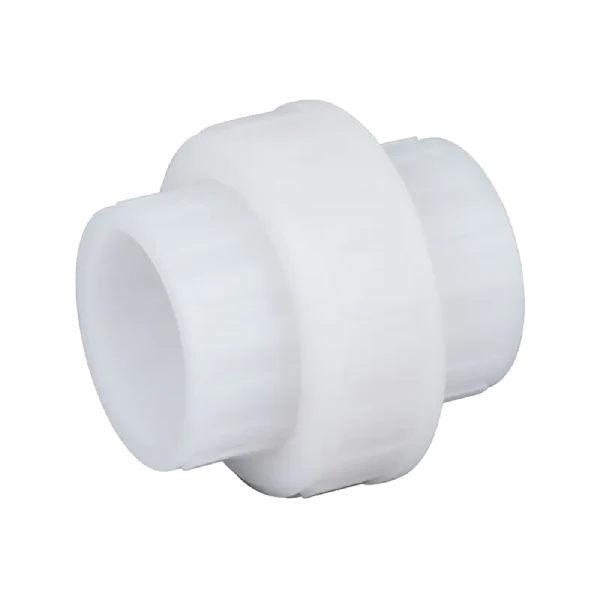

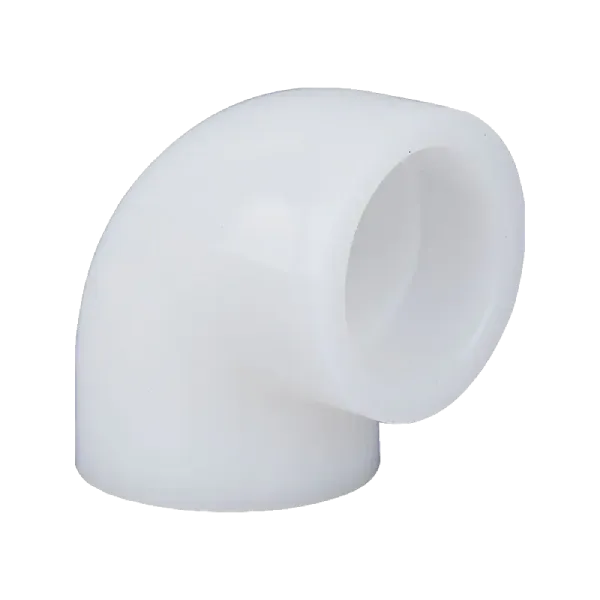

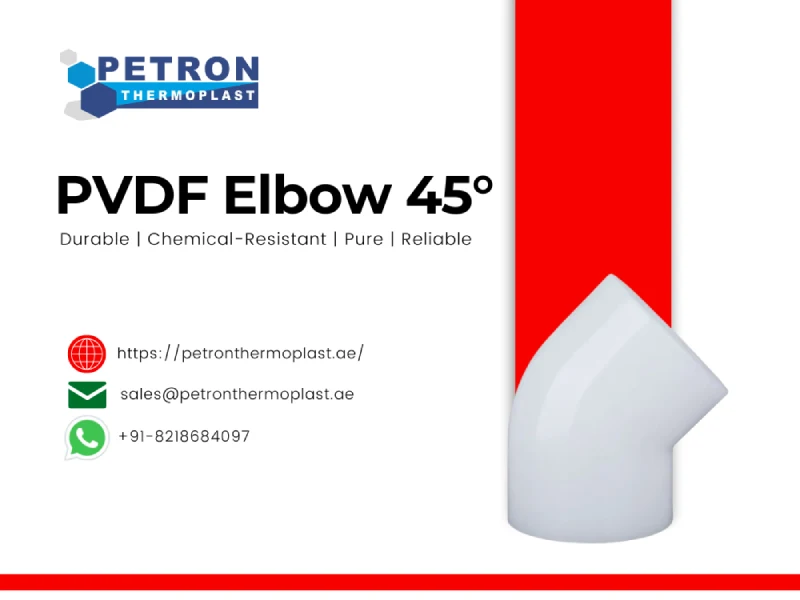

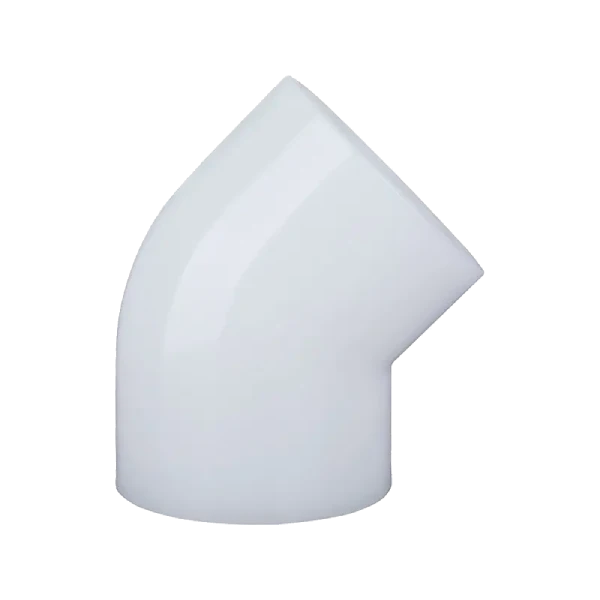

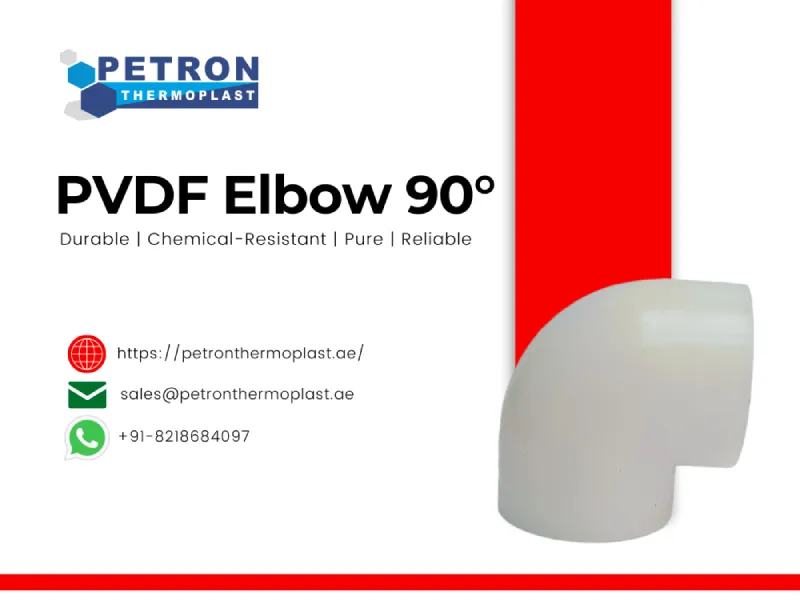

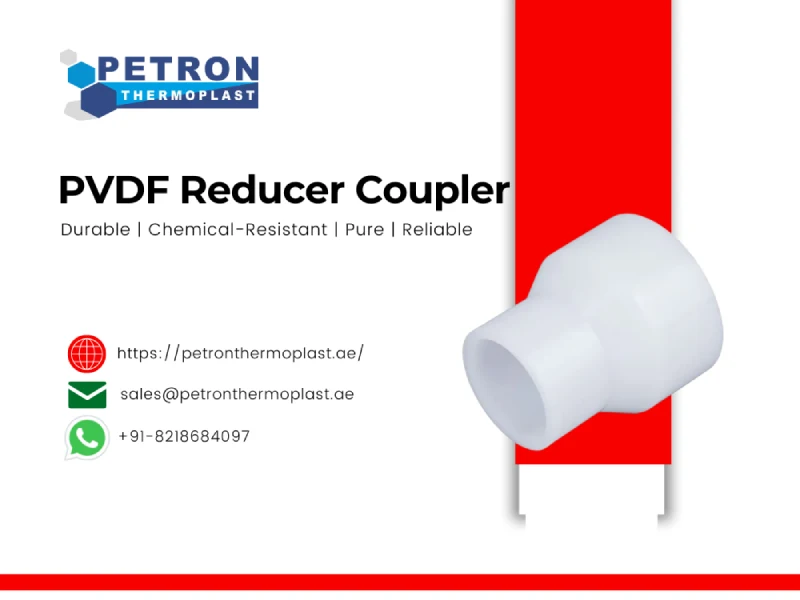

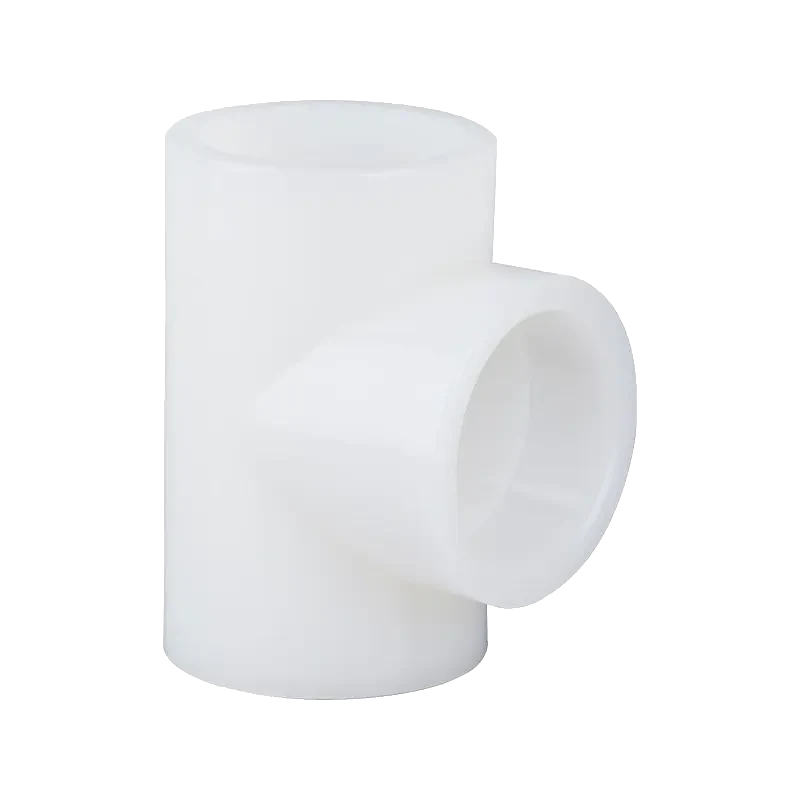

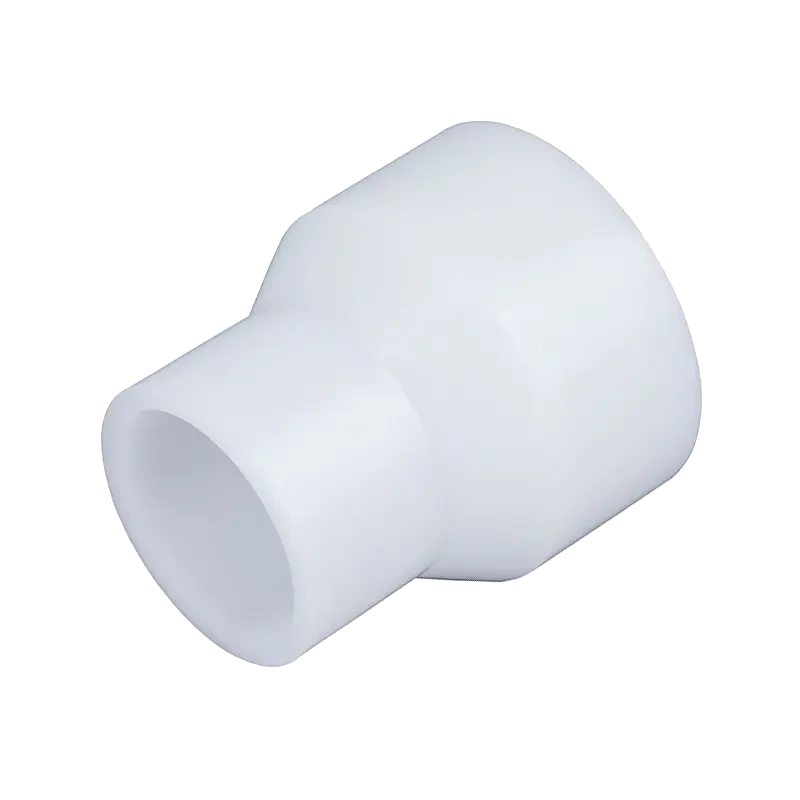

Whether you need PVDF elbows, tees, reducers, unions, valves, or custom-molded fittings, Petron Thermoplast ensures precision quality, competitive prices, and fast delivery across the UAE and GCC region.
| Property | Value / Description |
|---|---|
| Material | Polyvinylidene Fluoride (PVDF) |
| Color | Natural / White / Opaque |
| Density | 1.78 g/cm³ |
| Working Temperature Range | -40°C to +140°C |
| Maximum Pressure Rating | Up to 10 bar (depends on size & thickness) |
| Thermal Conductivity | 0.19 W/m·K |
| Tensile Strength | 40 MPa |
| UV Resistance | Excellent |
| Flammability Rating | UL 94 V-0 |

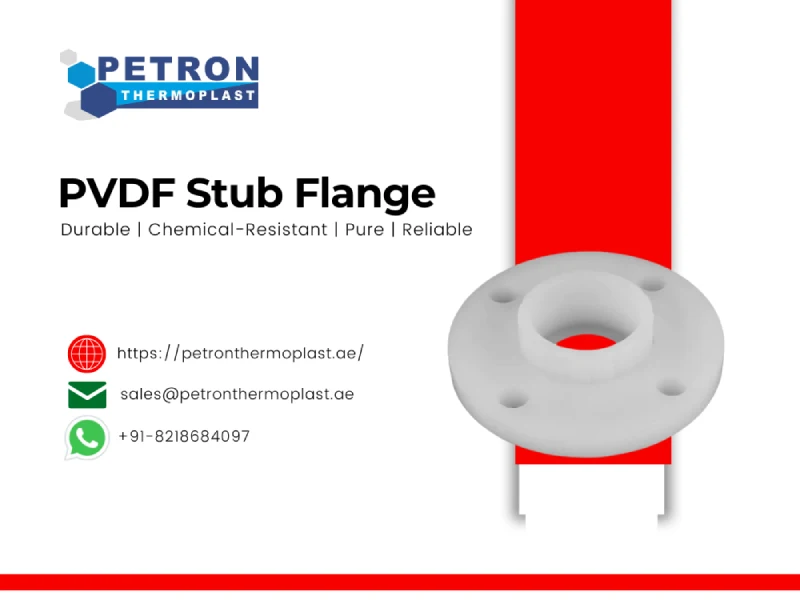

| Joining Methods | Butt Fusion, Socket Fusion, Flanged |
| Standards Compliance | ASTM D3222, ISO 10931, DIN 8077/8078 |
PVDF (Polyvinylidene Fluoride) is a high-performance thermoplastic polymer known for its exceptional resistance to most chemicals, excellent mechanical strength, and outstanding UV stability. It is widely used where traditional plastic materials like PVC, CPVC, or PP cannot withstand the harshness of industrial processes.
| Property | PVDF | CPVC | PP (Polypropylene) | PVC-U |
|---|---|---|---|---|
| Max. Temperature | Up to 140°C | Up to 90°C | Up to 100°C | Up to 60°C |
| Chemical Resistance | Excellent | Very Good | Good | Moderate |
| UV Resistance | Excellent | Fair | Poor | Poor |
| Mechanical Strength | High | Medium | Medium | Medium |
| Cost | Higher | Moderate | Low | Low |
| Purity (for High-Purity Systems) | Excellent | Good | Moderate | Moderate |
| Common Applications | Chemical, Semiconductor, Pharma | Industrial, HVAC | Water, Drainage | Plumbing, Water Supply |
- Exceptional Chemical Resistance – Withstands acids, bases, and organic solvents.
- High Thermal Stability – Operates continuously up to 140°C.
- Excellent Mechanical Strength – Durable and impact-resistant even at low temperatures.
- UV & Weather Resistant – Suitable for outdoor installations.
- Low Permeability – Prevents leakage of gases and fluids.
- Flame Retardant – Self-extinguishing material (UL 94 V-0).
- Smooth Internal Surface – Ensures minimal pressure loss and prevents scaling.
- Long Service Life – High resistance to wear and stress cracking.
| Nominal Diameter (mm) | Outside Diameter (mm) | Wall Thickness (mm) | Pressure Rating (Bar) |
|---|---|---|---|
| 16 | 16 | 1.5 | 10 |
| 20 | 20 | 1.9 | 10 |
| 25 | 25 | 2.3 | 10 |
| 32 | 32 | 2.9 | 10 |
| 40 | 40 | 3.7 | 10 |
| 50 | 50 | 4.6 | 10 |
| 63 | 63 | 5.8 | 10 |
| 75 | 75 | 6.8 | 10 |
| 90 | 90 | 8.2 | 10 |
| 110 | 110 | 10.0 | 10 |
PVDF (Polyvinylidene Fluoride) Pipe Fittings are designed for high-performance fluid handling in industries that demand chemical resistance, purity, and durability. Their superior mechanical properties and resistance to aggressive environments make them suitable for a wide range of industrial, commercial, and specialized applications.
Here are the key applications of PVDF pipe fittings supplied by Petron Thermoplast FZ LLC:
1. Chemical Processing Systems
PVDF pipe fittings are extensively used in chemical plants for conveying acids, bases, solvents, and corrosive fluids. They maintain structural integrity under high pressure and temperature, ensuring safe transport of hazardous chemicals like hydrochloric acid, sulfuric acid, and sodium hydroxide.
2. Water & Wastewater Treatment
Used in desalination, RO (Reverse Osmosis), and ETP/STP plants, PVDF fittings are ideal for handling chlorinated water, oxidizing agents, and cleaning solutions. Their excellent corrosion resistance ensures long-term operation in harsh water treatment environments.
3. Semiconductor & Microelectronics Manufacturing
In semiconductor fabrication, PVDF is preferred for ultra-pure water and chemical delivery systems. Its low extractable content and non-contaminating surface make it suitable for critical processes such as etching, plating, and chemical rinsing.
4. Pharmaceutical & Biotechnology
PVDF pipe fittings are used in high-purity process systems, including drug formulation, sterile solution transfer, and laboratory setups. They ensure hygienic operations with low leachables and compliance with cleanroom standards.
5. Food & Beverage Processing
PVDF is FDA-compliant and resistant to cleaning chemicals, making it suitable for food-grade piping systems in beverage production, dairy plants, and CIP (Clean-in-Place) loops where hygiene and chemical compatibility are essential.
6. Acid & Alkali Transport Lines
PVDF fittings are ideal for transferring strong acids and alkalis in refineries, metal finishing plants, and electroplating systems. Their high resistance to chemical attack minimizes maintenance and downtime.
7. Marine & Offshore Applications
PVDF’s strong resistance to saltwater, UV radiation, and marine atmospheres makes it perfect for offshore platforms, seawater cooling systems, and ballast water treatment plants.
8. Metal Finishing & Electroplating
PVDF fittings are commonly used in pickling, anodizing, and electroplating lines for their resistance to acids and oxidizing agents, ensuring consistent performance even under high process temperatures.
9. Power Generation & Cooling Systems
Used in chemical dosing lines, cooling water circulation, and waste gas scrubbing systems, PVDF fittings can withstand high temperatures and corrosive media found in power and thermal plants.
10. Pulp & Paper Industry
PVDF fittings are suitable for conveying bleaching chemicals, alkaline solutions, and process slurries in pulp and paper mills, offering durability and reliability in continuous operations.
11. Mining & Metallurgy
PVDF fittings handle acidic leach solutions and chemical reagents used in mineral extraction and refining processes, where other plastics may degrade rapidly.
12. Laboratory & Analytical Equipment
PVDF fittings are used in chemical dosing systems, analytical devices, and laboratory piping for their inertness and high precision in controlling fluid flow.
PVDF pipe Fitting Products are used in a wide range of industrial applications requiring mechanical precision, dimensional accuracy, and durability:
Excellent corrosion resistance to a wide range of chemicals
Suitable for both pressure and vacuum applications
Lightweight and easy to install
Minimal maintenance with high operational reliability
Suitable for cleanroom and high-purity systems
Longer lifespan compared to PVC, PP, or HDPE in harsh conditions
When it comes to high-performance plastic piping solutions like PVDF pipe and fittings, Petron Thermoplast stands out as a trusted and reliable supplier in the industry. With a commitment to quality, innovation, and customer satisfaction, we deliver solutions that meet the most demanding industrial requirements.
Trusted Industrial Supplier
with years of experience in plastic piping systems
Extensive Inventory
Wide range of PVDF fittings available in multiple sizes and configurations
Fast & Efficient Delivery
Ready stock for urgent requirements
Competitive Pricing
Best value for bulk and project orders
International Standards Compliance
Products conform to ASTM, DIN, and ISO specifications
Technical Expertise
Support for design, installation, and material selection
Excellent Customer Support
From product selection to after-sales service, our dedicated support team ensures a seamless experience for every client.
Customization & Processing Options
At Petron Thermoplast, we offer customized PVDF fittings to meet your specific system requirements.
Customization options include:
- Tailor-made dimensions and wall thicknesses
- Custom-molded and machined PVDF fittings
- Pre-fabricated manifolds and assemblies
- Choice of connection type (butt fusion, socket fusion, or flanged)
- OEM branding or marking options
Each product undergoes strict inspection and testing before dispatch
Dimensional accuracy and tolerance checks
Pressure and leak testing
Certification of conformity and traceability
Visual and mechanical inspection
Material verification per ASTM D3222 / DIN 8077 / ISO 10931 standards
At Petron Thermoplast FZ LLC, our PVDF pipe fittings are trusted across a wide range of industries that require high-performance, corrosion-resistant, and long-lasting piping solutions. Engineered for reliability and purity, our PVDF fittings perform exceptionally well in critical environments where metal or lower-grade plastics cannot withstand harsh chemicals or extreme temperatures.
1. Chemical & Petrochemical Industry
PVDF fittings are extensively used in chemical processing plants for transferring acids, alkalis, and solvents. Their superior chemical resistance ensures safety, reliability, and long service life even under aggressive media exposure.
2. Water & Wastewater Treatment
Used in water purification, desalination, and effluent treatment plants, PVDF fittings resist corrosion from chlorine, ozone, and other treatment chemicals. They help maintain system integrity and minimize downtime.
3. Pharmaceutical & Biotechnology
Our high-purity PVDF fittings are ideal for sterile fluid transfer and cleanroom applications. They ensure contamination-free operations in manufacturing, formulation, and process lines for medicines and bioproducts.
4. Semiconductor & Electronics
PVDF’s purity and low extractables make it suitable for ultra-pure water systems, chemical delivery, and etching processes in semiconductor and microelectronics production facilities.
5. Food & Beverage Industry
PVDF is FDA-compliant and non-toxic, making it an excellent choice for food-grade piping systems, beverage production lines, and CIP (Clean-In-Place) systems where hygiene and durability are vital.
6. Oil & Gas and Marine
PVDF fittings resist corrosion from saltwater, hydrocarbons, and harsh chemicals, making them perfect for offshore, marine, and refinery applications where environmental and chemical stress is constant.
7. Metal Finishing & Electroplating
Highly resistant to acids and plating solutions, PVDF fittings are used in surface treatment, anodizing, and electroplating lines, ensuring consistent performance under high temperatures.
8. Power Generation
In cooling systems and chemical dosing applications, PVDF’s high temperature and pressure tolerance help maintain safe and efficient operation in power plants.
9. Pulp & Paper Industry
Our high-purity PVDF fittings are ideal for sterile fluid transfer and cleanroom applications. They ensure contamination-free operations in manufacturing, formulation, and process lines for medicines and bioproducts.
Serving All Emirates in the UAE
We supply and deliver PVDF material solutions to all major regions across the UAE, including:
- Dubai
- Abu Dhabi
- Sharjah
- Ajman
- Fujairah
- Ras Al Khaimah
- Umm Al Quwain
No matter your location or project size, we ensure on-time delivery and consistent product quality.
Conclusion
PVDF Pipe Fittings from Petron Thermoplast FZ LLC are the ideal solution for industries that demand exceptional chemical resistance, thermal stability, and long-term reliability. Engineered to perform under the most challenging process conditions, our PVDF fittings ensure leak-proof performance, extended service life, and superior purity for critical applications.
As one of the trusted PVDF pipe fittings suppliers in the UAE, we combine high-quality materials, precision engineering, and fast delivery to support projects across chemical, pharmaceutical, water treatment, and industrial sectors. With our strong commitment to quality, customization, and customer satisfaction, Petron Thermoplast stands out as your reliable partner for PVDF piping systems in the UAE and beyond. Choose Petron Thermoplast – where performance, durability, and service excellence connect.
PVDF fittings can typically handle temperatures from –40°C up to +140°C depending on the pressure and media.
Yes, PVDF has excellent UV and weather resistance, making it ideal for outdoor environments.
They can be joined using butt fusion, socket fusion, or mechanical (flanged/threaded) connections.
Yes, PVDF is used extensively in pharmaceutical and semiconductor industries due to its low extractables and high purity.
Absolutely. We offer custom designs, dimensions, and fabricated assemblies to meet your project needs.
They meet ASTM D3222, ISO 10931, and DIN 8077 standards for dimensional and material integrity.
